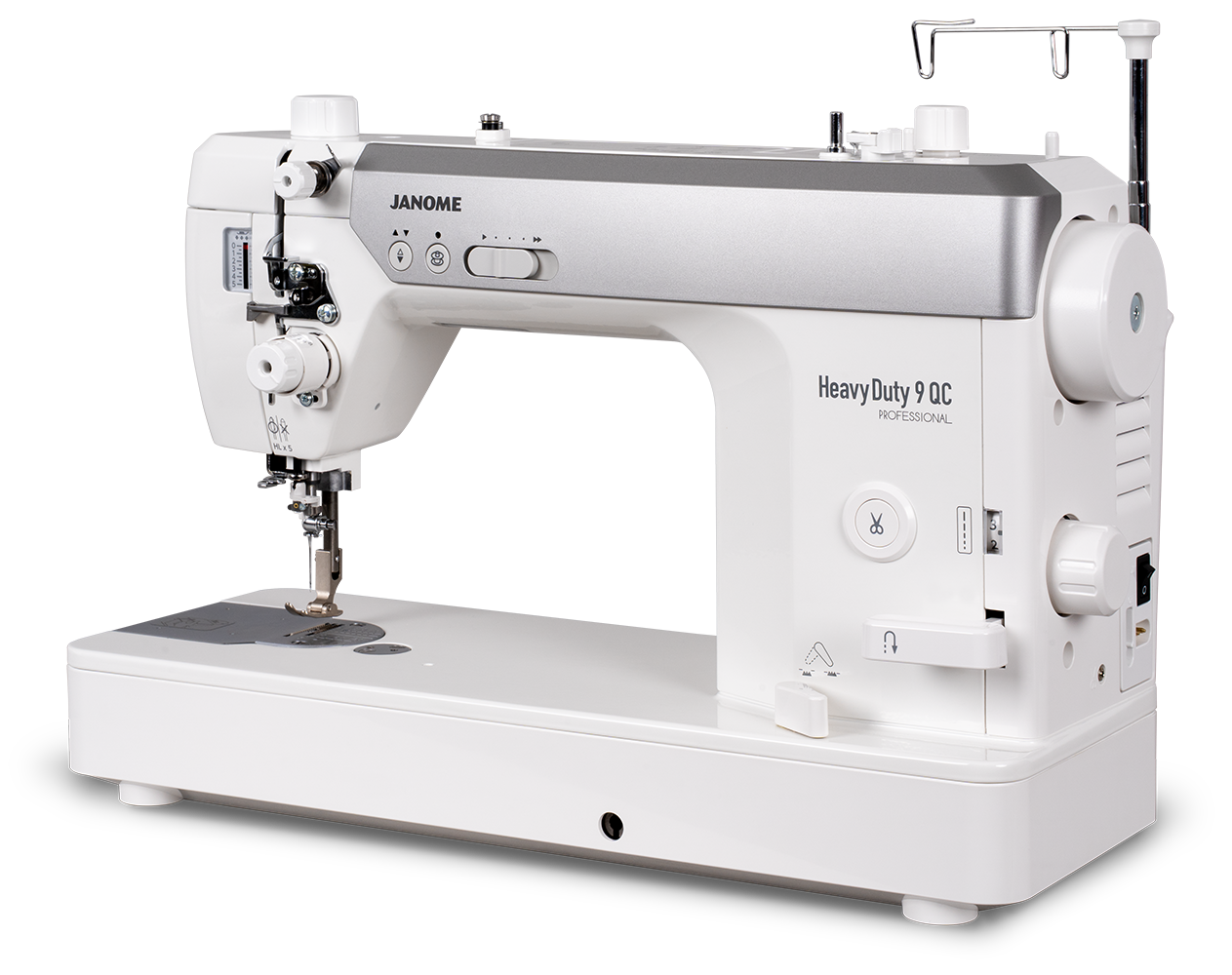

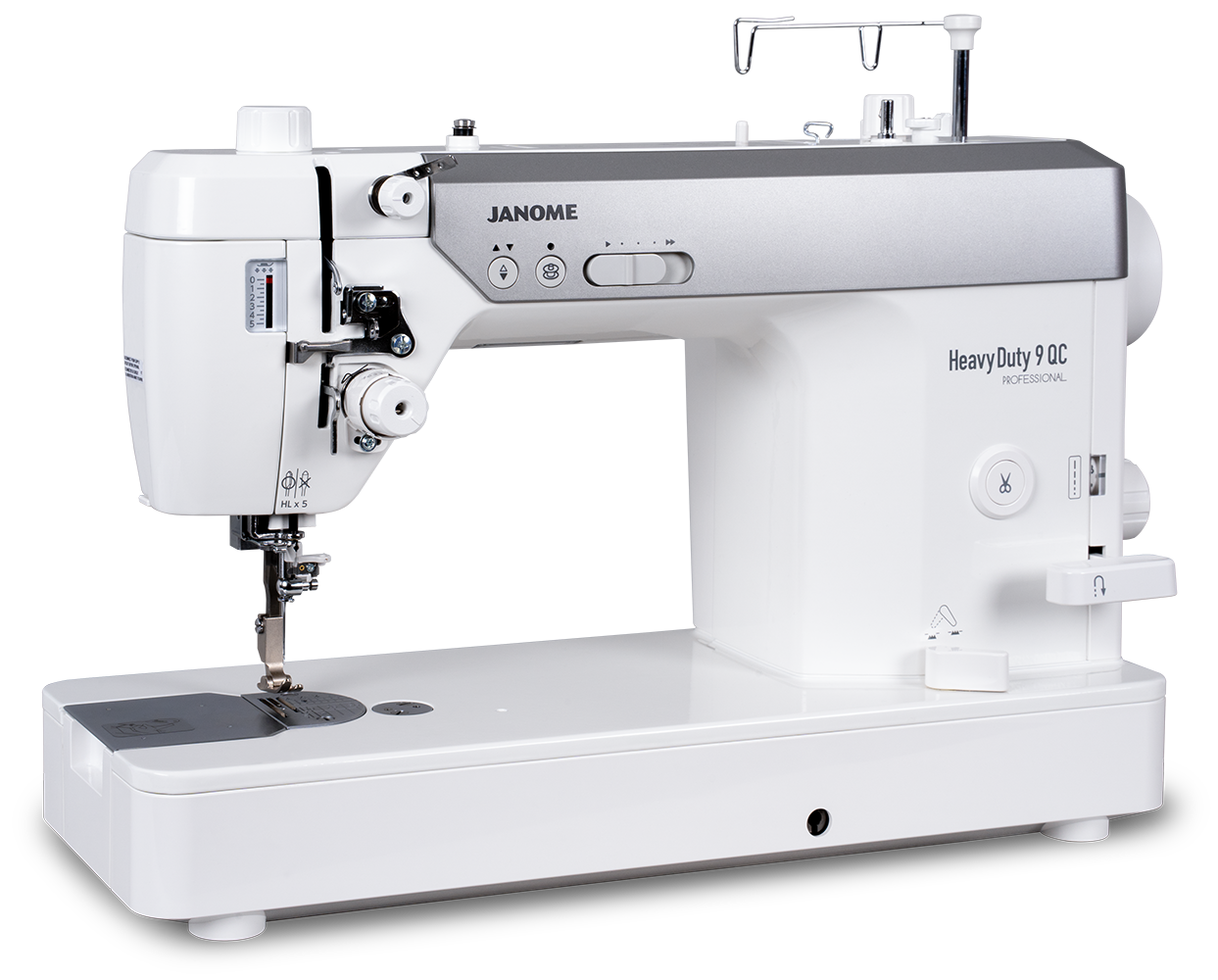

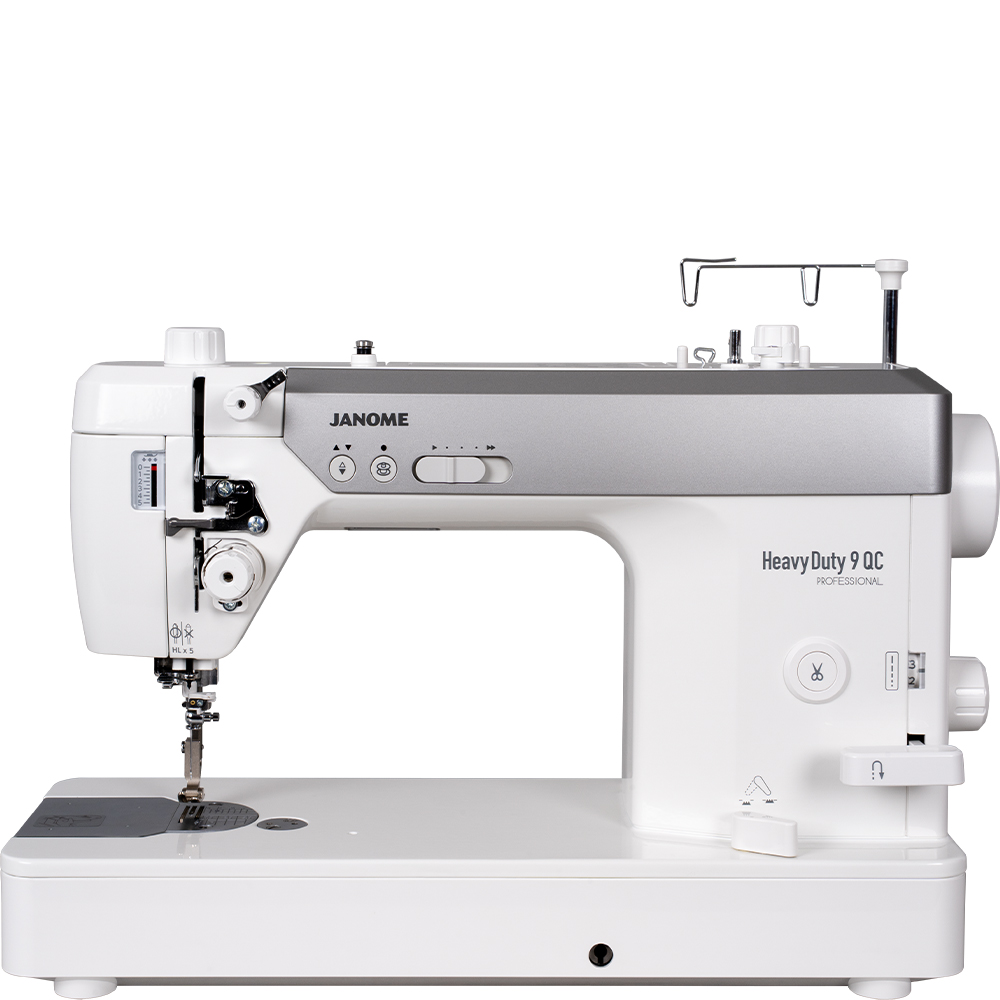

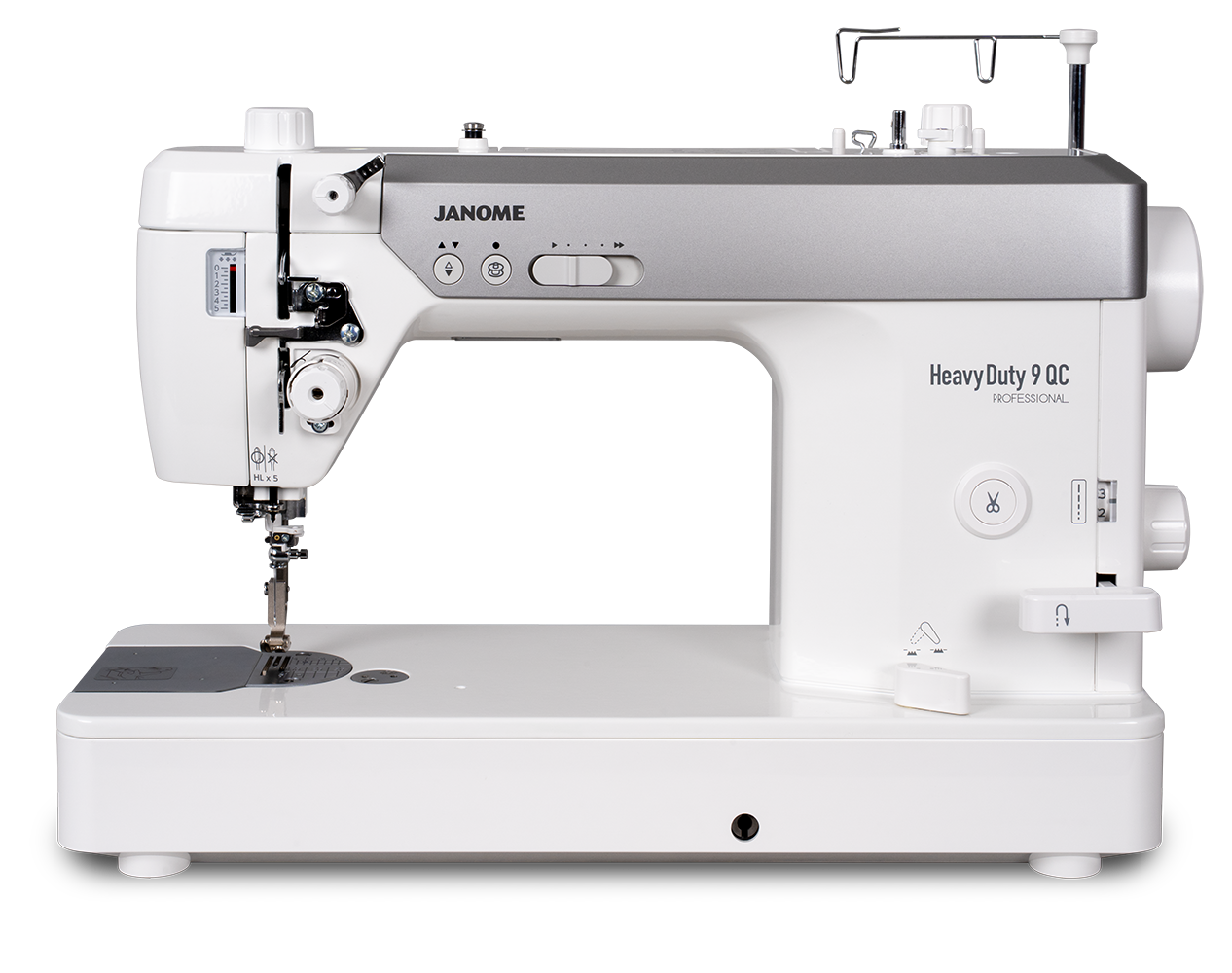

Fast speeds and smart design make the HD9QC Professional the perfect machine for sewing and quilting! You’ll find everything you need to complete projects quickly and easily. With sewing speeds up to 1,650 stitches per minute, serious sewists can experience efficiency like never before and with sturdy construction including eight enclosed ball bearings in the main shaft of the machine you will experience the quiet and smooth sewing that Janome is known for. The side-loading jumbo bobbin allows for easy access, holding 1.4X more thread than a standard bobbin.

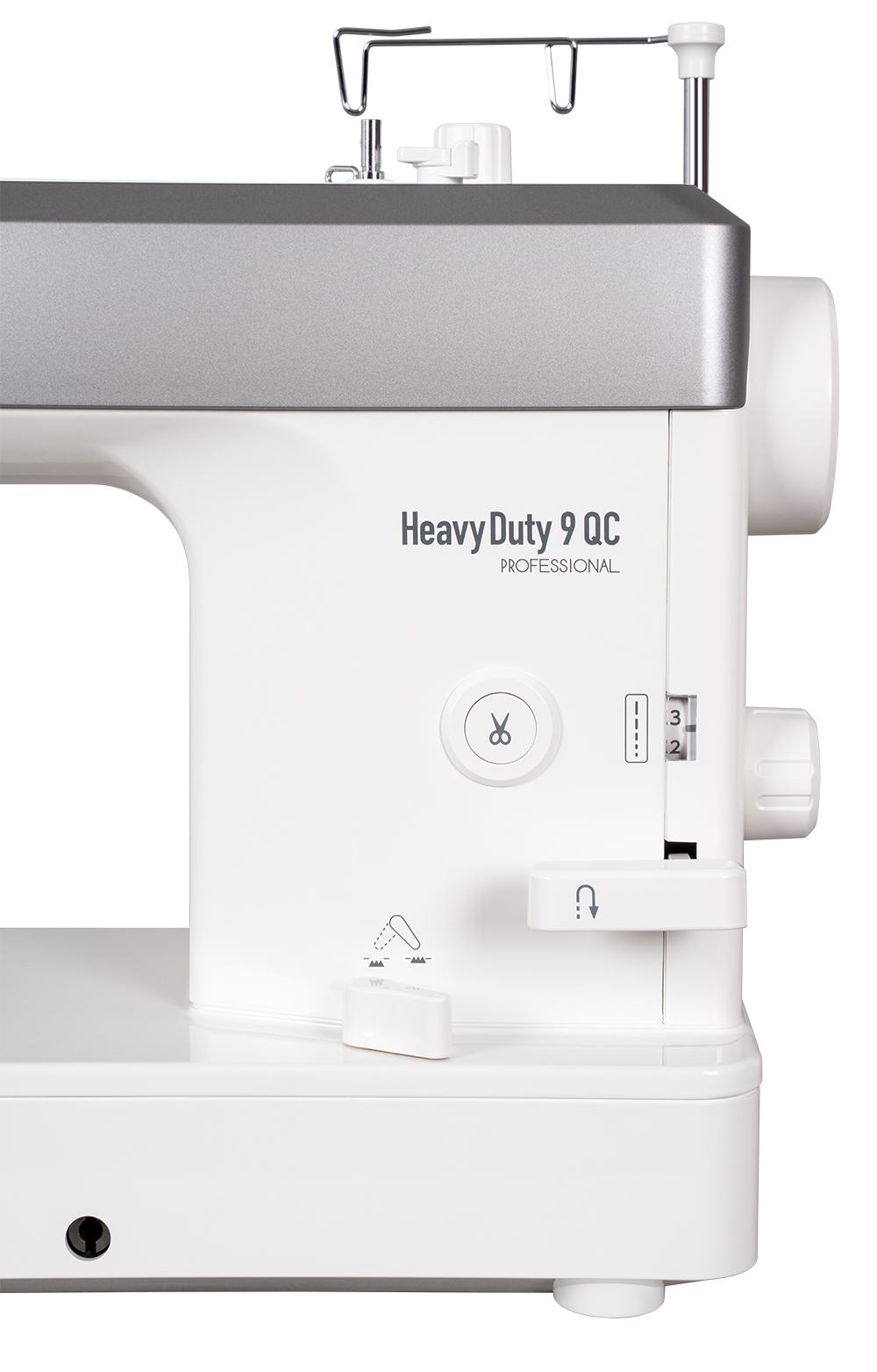

When sewing with average weights of thread, the automatic thread cutter can be accessed via the thread cutter button or the remote thread cutter – making the end of each seam that much easier to finish; heavier weight threads are not a problem either with the new Heavy Weight Thread Guide (HWTG). Tackle home décor and leather crafts with beautiful seams and top-stitching when using heavy weight threads on denim, canvas and leather.
UPC: 32212495342
Janome Resources
HD9QC Professional Product Manual
Download ManualKey Features
- High speed straight stitch-only
- Speeds up to 1,650 stitches per minute
- Industrial pretension threading
- Memorized needle up/down
- Speed control slider
- Automatic thread cutter - Noise Reduction
- Adjustable knee lift
- Independent bobbin winder motor
- Extra high presser foot lift
- Foot pressure adjustment by dial with indicator
- Up to 11lbs. of presser foot pressure
- Vertical full rotary, industrial hook bobbin
- Maximum stitch length 6mm
- Remote thread cutter operation compatible via socket
- HLx5 needle
- Highly responsive foot control

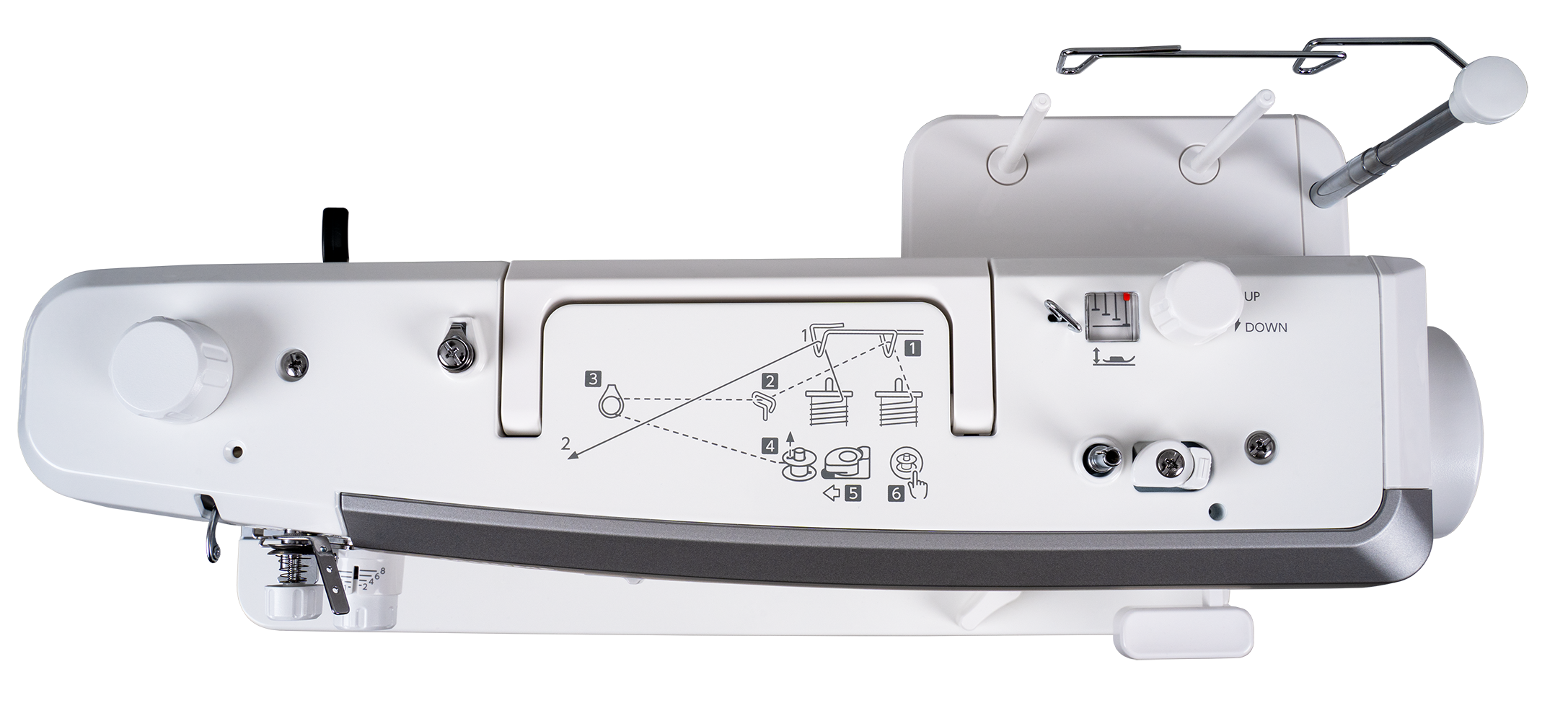

- Vertical, two spool thread delivery

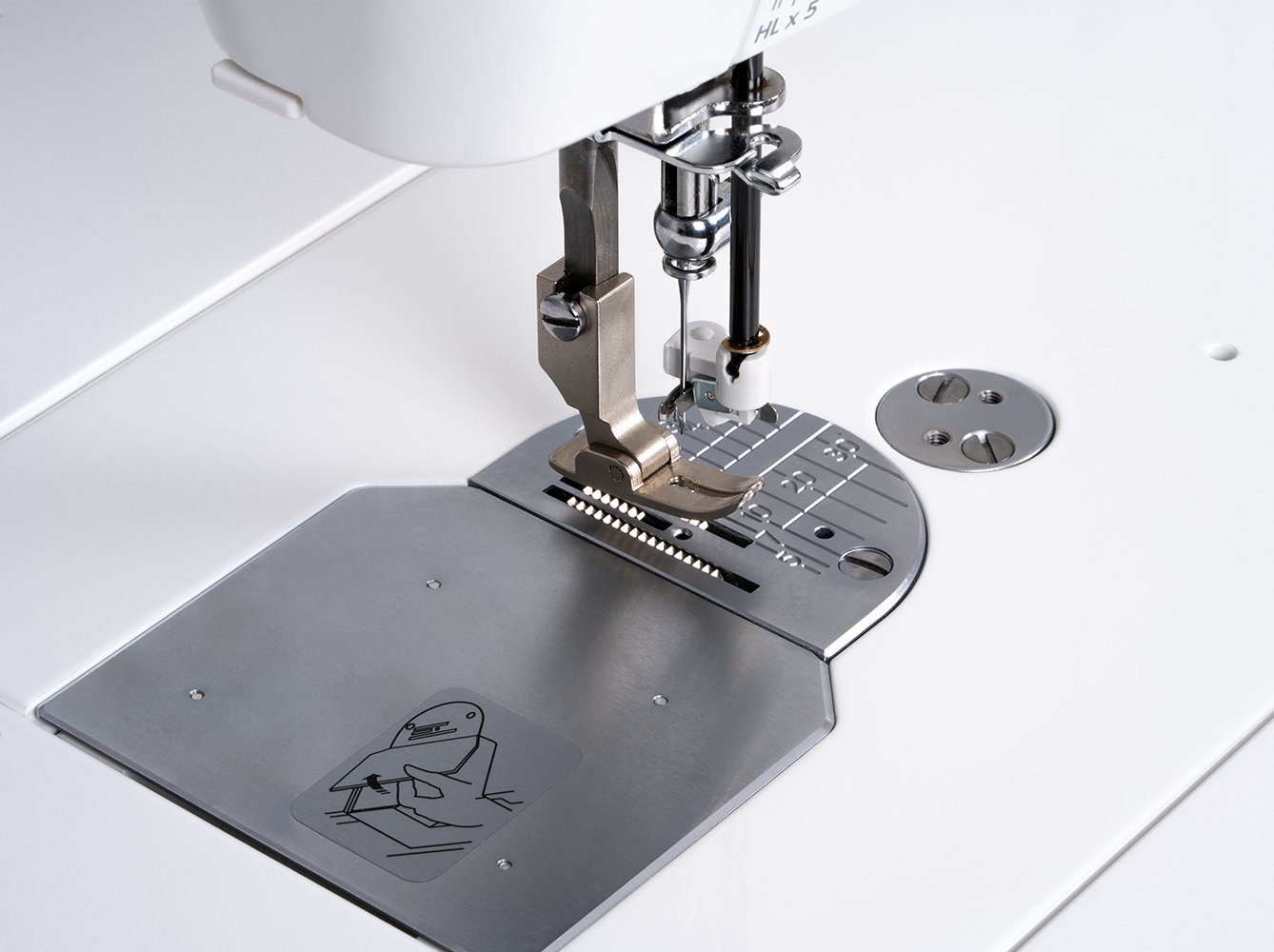

- Built-in needle threader
- Heavy weight thread guide

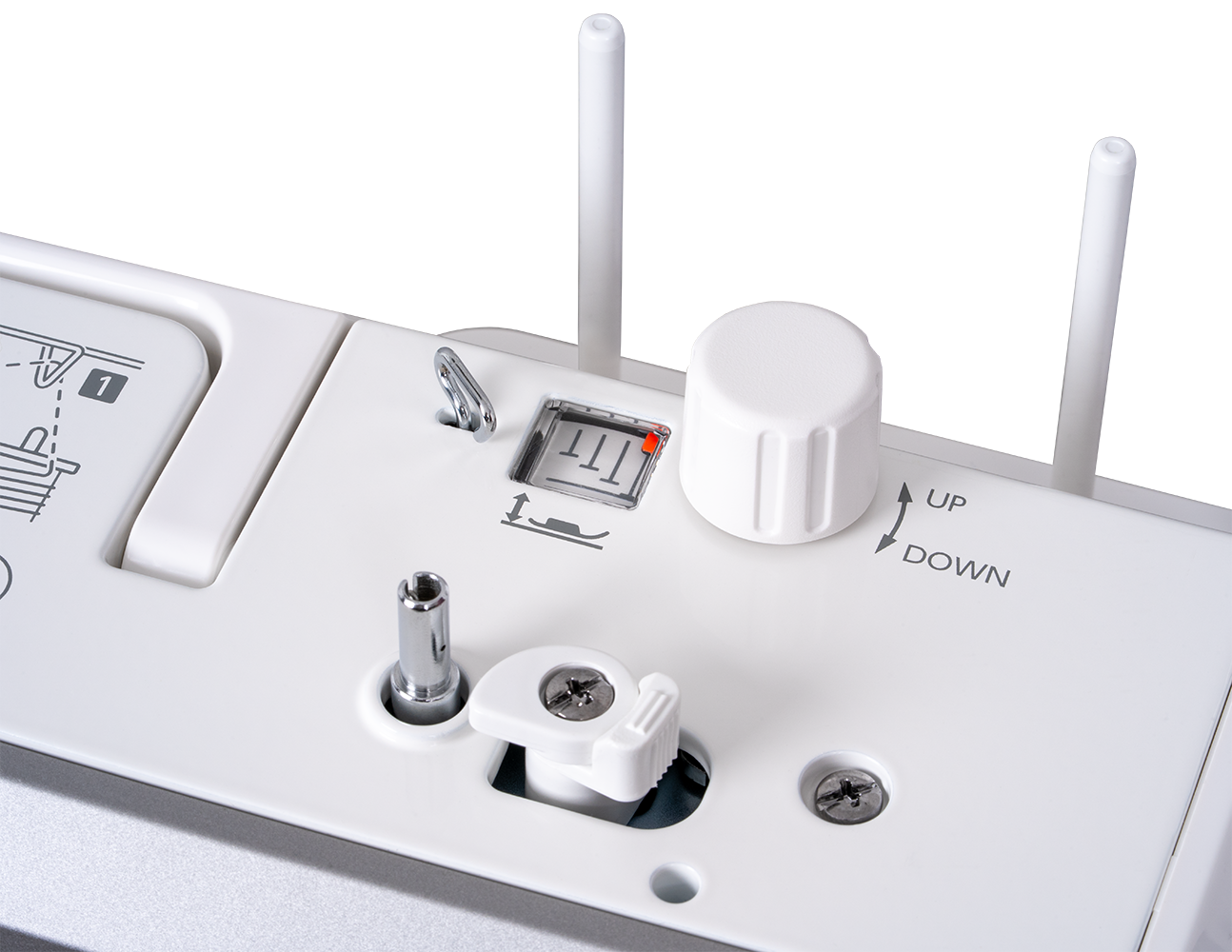

- Floating Function
- Feed Dog Drop
Recommended Accessories
Here are some accessories that will unlock even more features of your machine! Add these to your toolbox to expand your creative options and produce even more impressive results.
- 1/4" Ruler Foot & Plate (high speed)
- 1/4" Seam Foot (High Speed)
- Bobbin HD9 V2
- Cloth Guide
- Concealed Zipper Foot (High Speed)
- Darning Foot Type 2 (High Speed)
- Darning Foot w/ Plate (High Speed)
- Ditch Quilting Foot (High Speed)
- Even Feed Foot (for High speed Models)
- Extension Table for Highspeed Models
- FMQ Foot Set for High Speed Models
- Free Motion Frame Quilting Feet Set for (High Speed)
- Free Motion Quilting Table
- Garment Kit
- HD Roller Foot
- Heavy Duty Darning Foot w/ Plate
- Insert Plate B
- Leather Kit
- Leather Kit
- Needle Noter
- Needle Noter Pillow
- Needle Threader
- Piecing/Sewing Kit
- Pretty Grips
- Quilting/Ruler Kit
- Remote Thread Cutter Switch for HD9
- Ruler Work Kit High Shank
- Seam Guide(Adjustable)
- Straight Stitch Needle Plate w/ Foot
- Taping Foot
- Ultra Glide Foot (High Speed)
- Universal Sewing Table
- Velvet Foot
- Zipper Foot Adjustable (High Speed)
- Hook Type: Side Loading Full Rotary Hook Bobbin
- Number Of Stitches: Yes
- Thread Tension Control: Manual
- Needle Threader: Built-in
- Presser Foot: Screw-on
- Needle Updown: Memorized

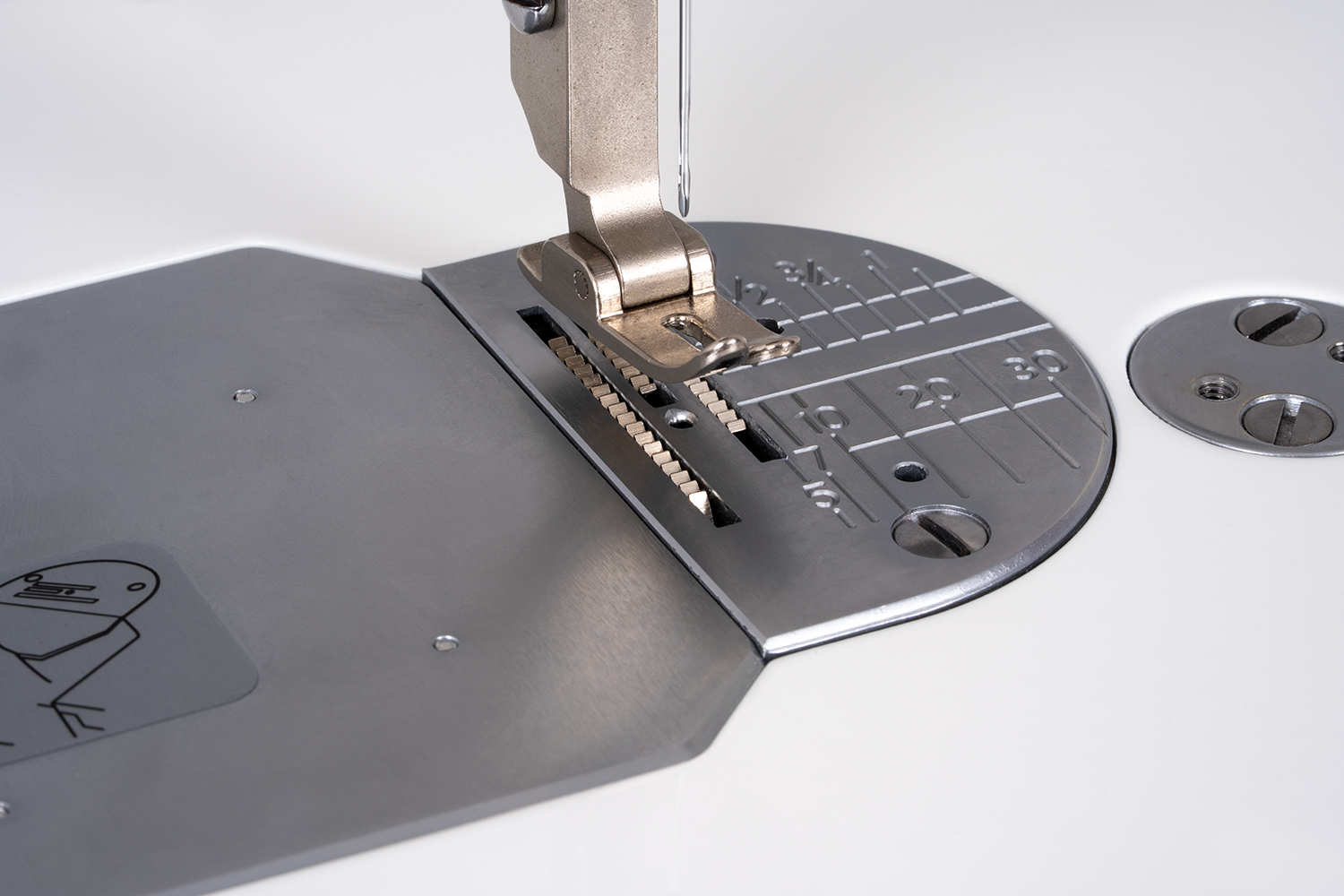

- Feed System: 3 Piece Feed Dog
- Drop Feed: Yes
- Needle Position: Yes
- Speed Control Slider: Yes
- Automatic Thread Cutter: Yes
- Number Of Stitch Combinations: Yes
- Knee Lift: Yes
- Machine Size Footprint: W 19.5" x D 8.3" x H 13"
- Machine Weight: 32lbs (14.5 kg)
- Workspace: W 9" x H 5.9"
- Bobbin Winding: Independent Motor
- Extra High Presser Foot Lift: Yes
- Stitch Selection Type: Dials
- Foot Pressure Adjustment: Yes
- Maximum Stitch Width: Straight Stitch Only
- Maximum Stitch Length: 6mm
- Cover: Dust Cover
- Other Features Of Note: High-speed straight stitch only machine, up to 1,650 SPM, up to 11lbs of presser foot pressure, highly responsive foot control
- Extra Large Footprint: Yes
