Continental M17

Name: JANOME CONTINENTAL M17
Brand: JANOME
SKU: CM17
Availability: OutOfStock

Own this machine already?

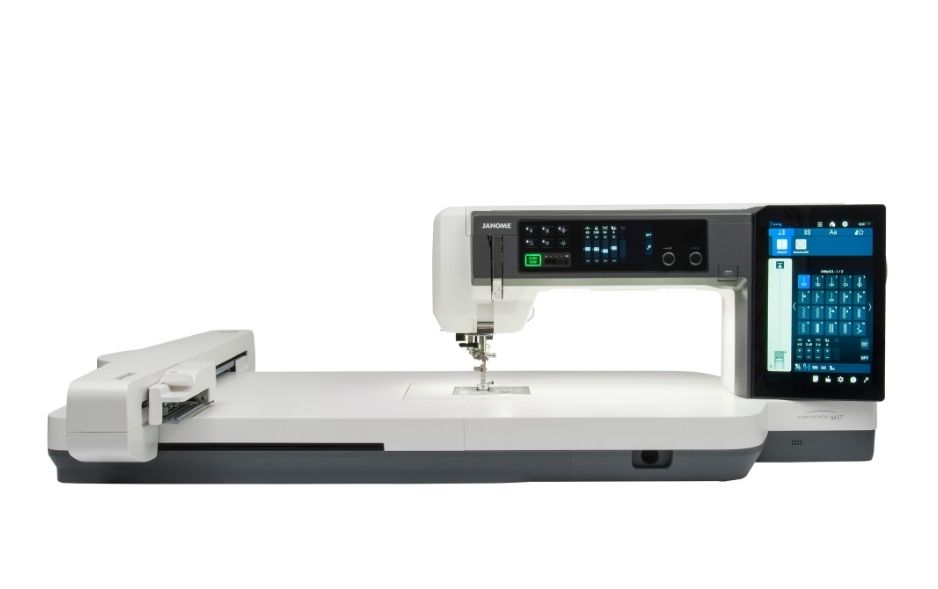

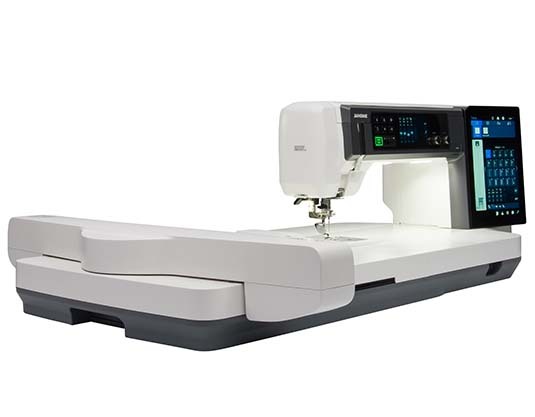

The Continental M17

Janome is proud to introduce the Next Generation Combo machine. Combining the top features of our most decorated machines to maximize your creative potential. The largest sewing area in the industry matched with the largest embroidery space. High Definition Quilting featuring the all-new Accurate Stitch Regulator A.S.R., and the Fastest Sewing speeds, are just a few of the 100 reasons to love this new model. The dual LCD color touch screens, make stitch changes and embroidery easy and enjoyable. Introducing new features such as the Thumbwheel function means you can delicately control the needle position to finish those intricate sewing projects.

Over 1,200 built-in embroidery designs and the largest embroidery hoop at 11.3” x 18.2” open up a whole new world of design capabilities. Five included embroidery hoops to use with the built-in programs from monogramming, to sashiko and everything in between. Janome's original features such as AcuFeed, QuiltBlockAdvisor, and Artistic Digitizer are included. Let the Continental M17 take you to the highest level of your own creative abilities.

Award-Winning Machine:
iF Design Award recognizes products for design excellence and exceptional quality.

Click Here for more information about iF and the Continental M17’s design award!

Brochure

Features & Benefits

View the Included Accessories

Click Here For more information on the CM17

Download the CM17 Sewing Manual Here

Download the CM17 Embroidery Manual Here

Touchscreens , Right Screen - LCD Full-color touchscreen 5.3” x 8.5” , Middle Screen – LCD Touchscreen 3.8” x 2.1”
Workspace – 13.5” x 5.5” inches to the right of the needle
Thumbwheel by machine head to raise and lower needle
Top Loading Full Rotary Hook Bobbin
850 Built-in stitches, 13 buttonhole stitches, plus 3 fonts

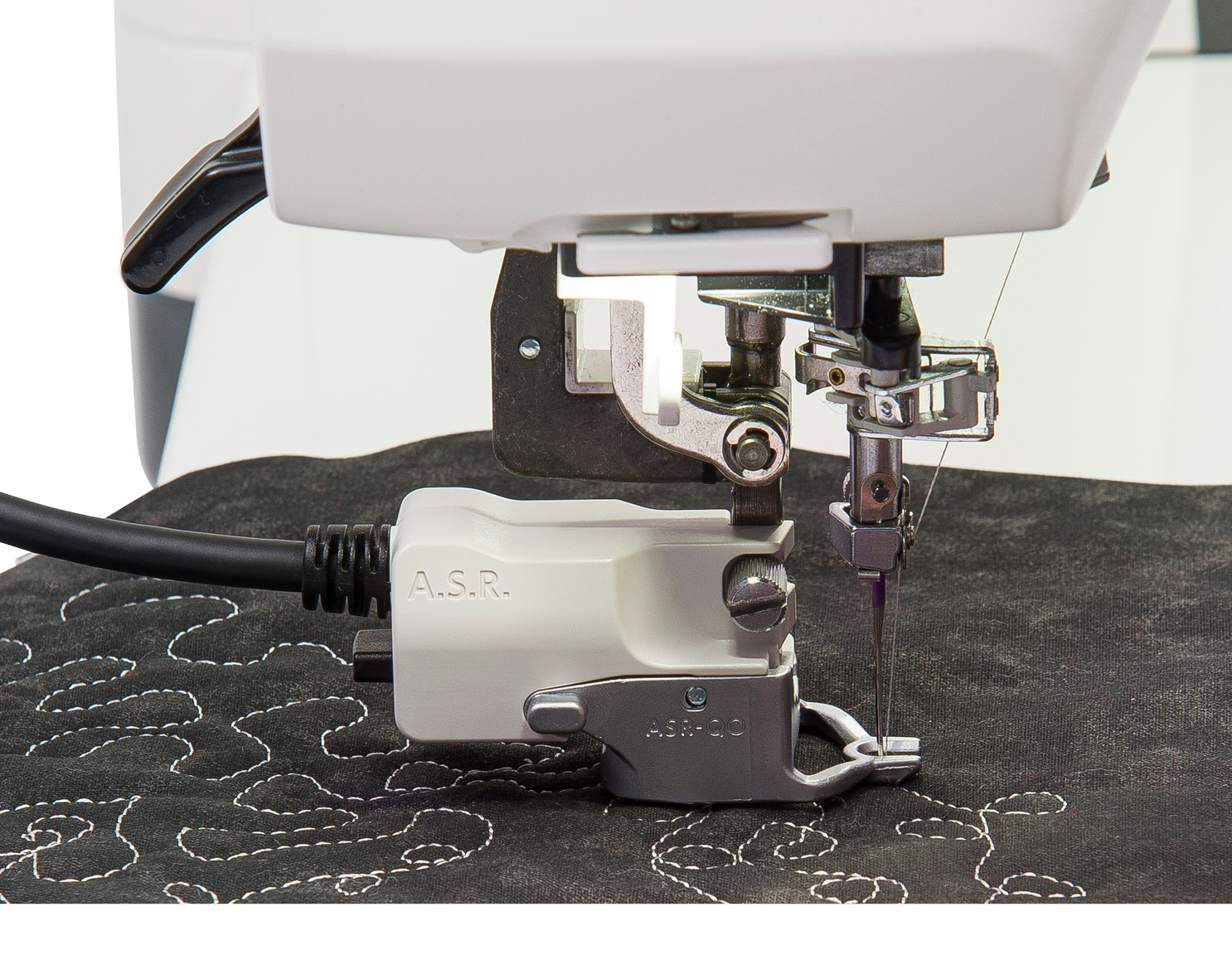

A.S.R. (Accurate Stitch Regulator) stitch regulation included A.S.R. (Accurate Stitch Regulator) and four different feet
850 Built-in stitches
1,230 Built-in embroidery designs
13 One-step buttonholes
Artistic Digitizer Jr software includes – compatible with both MacBook and PC
Self-opening Top Cover
Pop-up spool pins
Built-in Storage Space in the embroidery unit extension tables, top, and back of the machine
Maximum Sewing Speed – 1,300 SPM Straight Stitch; 1,000 SPM Zigzag Stitch
Automatic thread tension
Automatic built-in needle threader
Memorized needle up/down
Automatic presser foot lift
Automatic One-step needle plate lift with soft close
AcuFeed Flex Layered Fabric Feeding System
7-piece feed dog
91 needle positions
PC Based Programs included - StitchComposer, QuiltBlockAdvisor, ScreenSaverTool
Drop Feed
Variable Zig Zag for Free Motion Quilting with width adjustment for satin stitch
Start/stop button
Speed control slider
Locking stitch button
Automatic thread cutter with memory function
Twin needle guard
Easy reverse button
Adjustable knee lift
Independent bobbin winding motor at 2,000 RPM
Sewing application support with on-screen help
Nine ultra-bright LED lights in four locations
1,230 Built-in embroidery designs

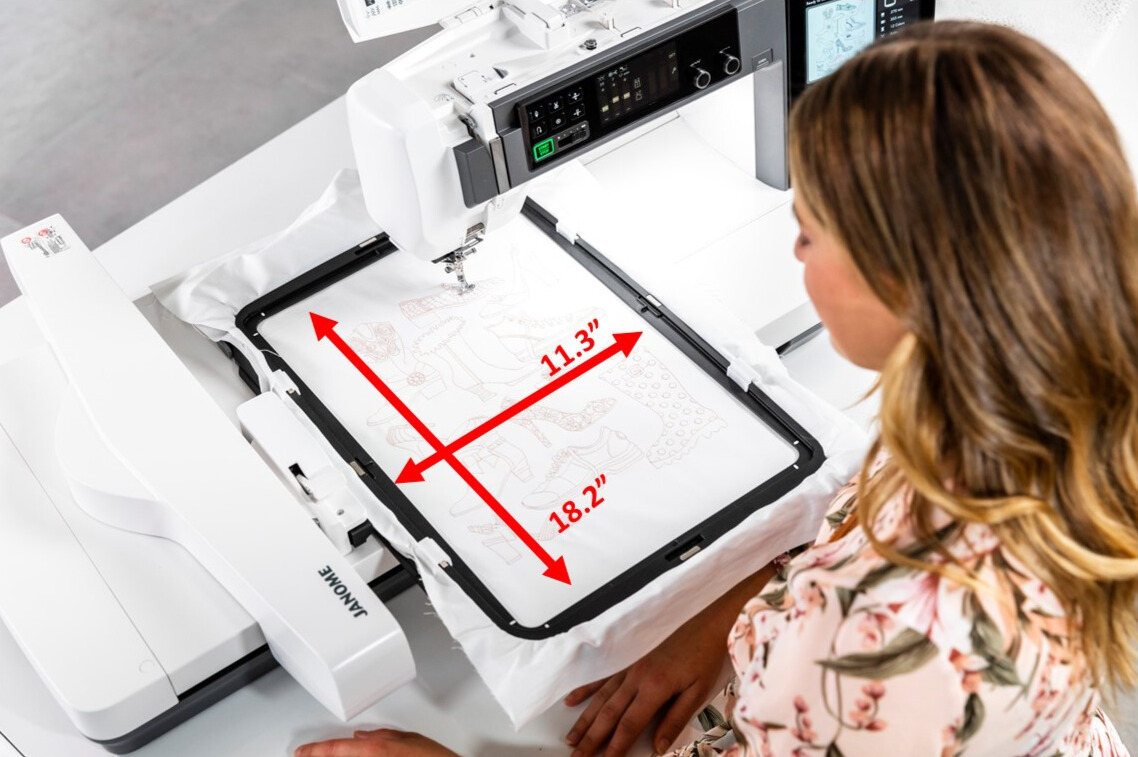

Maximum embroidery size 11.3" x 18.2"
Design transfer options: Wireless, USB, Direct PC connection

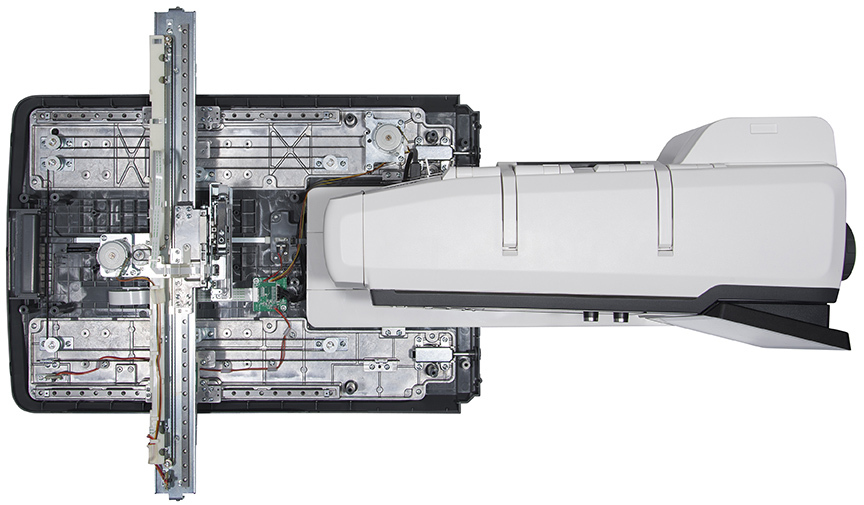

Gantry Style Embroidery Arm / Embroidery sewing speed: 400 – 1,200 spm
Embroidery format: .JEF, .JEF+, .JPX / Editing functions: Resize, Rotate, Flip, Zoom, Duplicate, Combine, Sewing Order, Single Color Sewing, Color Grouping, Corner Layout
Auto return post thread break
Embroidery Positioning Marker
Storage Compartments in Extension Tables
Easy Tightening Lever on Embroidery Hoops
5 included hoops RE46d SQ28d RE20d SQ10d ASQ27d
RE46d

Standard Accessories

Optional Accessories

VIEW ALL

Model Comparison

Continental M17

Embroidery

Hook Type	Top Loading Full Rotary Hook Bobbin
Thread Tension Control	Automatic
Maximum Stitch Width	9mm
Feed System	AcuFeed Flex
Easy Reverse Button	Yes
Bobbin Winding	Independent Motor
Stitch Selection	Touchscreen
Dual Voltage 80v - 240v	No
Cover	Semi-Hard Cover
Number of Stitches	850
Number of Buttonholes	13 One-Step Buttonholes
Needle Threader	Computerized
Needle Up Down	Memorized
Free Arm	No
Drop Feed	Yes
Needle Position	91
Locking Stitch Button	Yes
Twin Needle Guard	No
Number of Stitch Combination	Up to 100 stitches
Last Stitch Recall Capability	Yes
Knee Lift	Yes
Machine Size	W43.8"x H13.9"x D28.0"
Machine Weight	44.25 lbs (66.8 including embroidery unit)
Work Space	W 13.5" x H 5.5"
Extra High Presser Foot Lift	Yes
Foot Pressure Adjustment	Yes
Maximum Stitch Length	5mm
Other Features
Number of Designs	1230
Fonts for Monogramming	10
Maximum Embroidery Size	RE46d Hoop 11.3"x18.2"
Design Transfer Options	Wireless
Embroidery Sewing Speeds	1200
Embroidery Format	JEF, .JEF+, .JPX
On Screen Editing Functions	Yes Resizing, Combine, duplication, Rotate, Vertical/Horizontal Flip, Arcing, Groupiing, User Color Choice
Programmable Jump Thread Trimming	Yes
Adjustable Speed While Embroidering	Yes
Flexible Stitch Travelings	units of 1, 10, 100 and 500
Auto Return Post Thread Break	Yes
Adjustable Hoop Positioning	Yes
Thread Brand Selection	Janome (Polyester & Acrylic), Gutermann, Robinson-Anton (Polyester & Arcylic), Mettler, Iris UltraBrite, Madiera, Jenny Haskins
Available Hoops	RE46d 11 x18.1” (280x460 mm), SQ28d 11 x 11” (280x280 mm), RE20d 5.5 x 7.9” (140 x2 00 mm), SQ10d 3.9 x 3.9”(100 x 100 mm) ASQ27d 10.6 x 10.6” (270x270 mm)
